SKU:
GTP11762

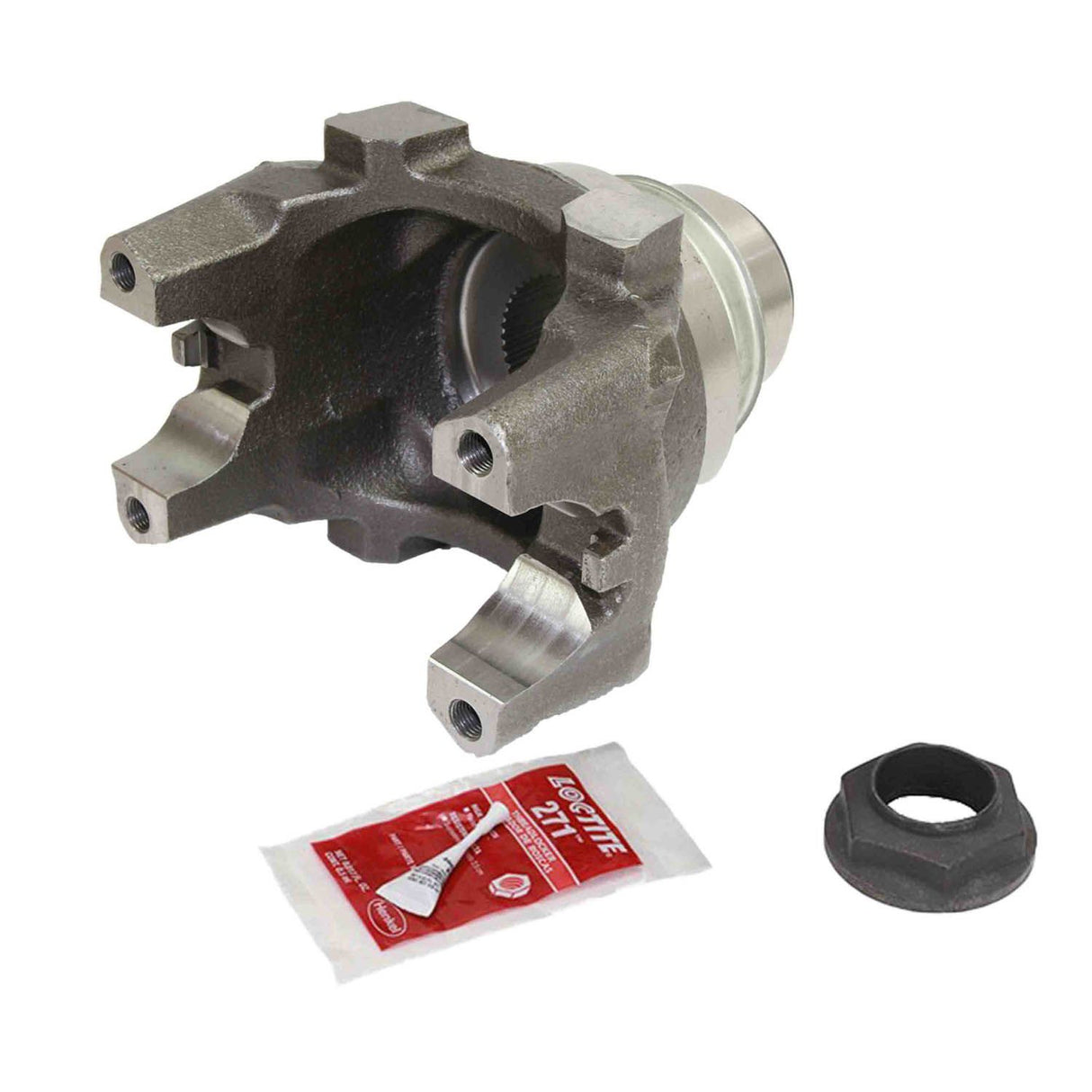

Half Round Style SPL170 Series End Yoke 41 Spline | 170-4-08448-1X, 170-4-1901-1, 5008448, S-23987, S-28016, S23987, S28016, SD-5008448, SD5008448
Regular price
$133.43
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 41 Spline | 170-4-08448-1X, 170-4-1901-1, 5008448, S-23987, S-28016, S23987, S28016, SD-5008448, SD5008448 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 41 Spline | 170-4-08448-1X,...
Regular price
$133.43
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| C-Bore Depth | 0.38 Inch |
| C-Bore Diameter | 2.64 Inch |
| Centerline to End | 7.19 Inch |
| Diameter | 2.938 Inch |
| Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 3 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Series | SPL170 Series |
| Spline | 2.143-41 Inch |
| Spline Quantity | 41 |
| Spline Size | 2.143-41 Inch |
| Type | Splined Hole |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-08448-1X |
| Spicer | 170-4-1901-1 |
| Spicer | 5008448 |
| Genuine Newstar | S-23987 |
| Genuine Newstar | S-28016 |
| Genuine Newstar | S23987 |
| Genuine Newstar | S28016 |
| Genuine Newstar | SD-5008448 |
| Spicer | SD5008448 |
