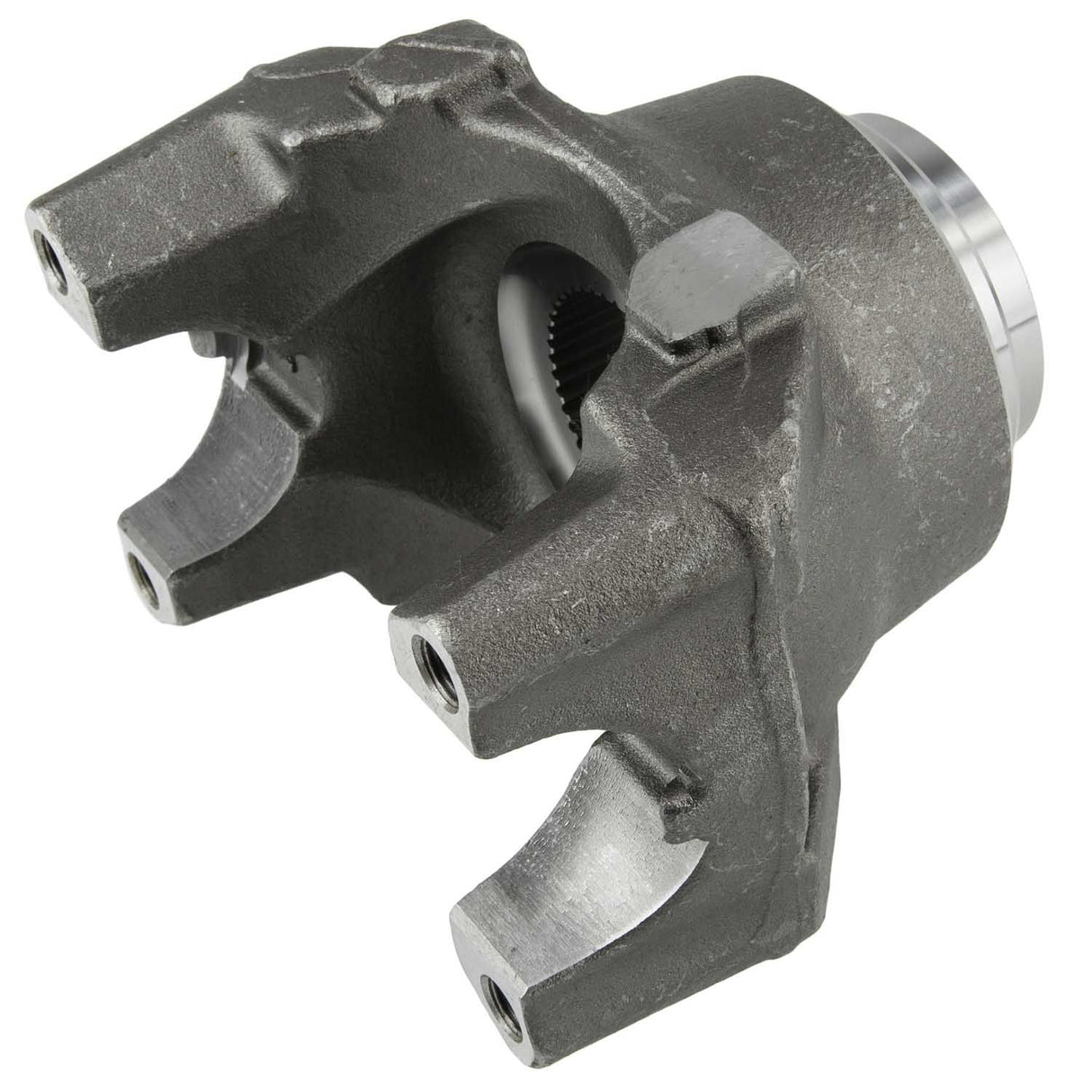

Half Round Style SPL170 Series End Yoke 46 Spline | 170-4-1271-1X, 170412711, 2503283C, 2503283C1, 3947961, N170-4-1271-1, S-13497, S-13865, S13497, S13865, SD-170-4-1271-1X, SD170412711X, SP170-4-1271-1X, SP170412711X
Regular price
$132.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 46 Spline | 170-4-1271-1X, 170412711, 2503283C, 2503283C1, 3947961, N170-4-1271-1, S-13497, S-13865, S13497, S13865, SD-170-4-1271-1X, SD170412711X, SP170-4-1271-1X, SP170412711X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 46 Spline | 170-4-1271-1X, ...
Regular price
$132.69
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Bore Diameter | 2.39 Inch |
| C'bore Depth | 0.157 Inch |
| C-Bore Depth | 0.157 Inch |
| C-Bore Diameter | 2.4409 Inch |
| Centerline to End | 5.59 Inch |
| Centerline To End | 5.59 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.879 Length Thru Hole: 2.750 Centerline To End: 5.590 CBore Depth: 0.157 Inch |
| Ground Hub Diameter | 2.879 Inch |
| Hole Diameter | 2.879 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.879 Inch |
| Series | SPL170 Series |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-1271-1X |
| Spicer | 170412711 |
| International | 2503283C |
| International | 2503283C1 |
| Volvo Truck | 3947961 |
| Neapco OE Series | N170-4-1271-1 |
| Genuine Newstar | S-13497 |
| Genuine Newstar | S-13865 |
| Genuine Newstar | S13497 |
| Genuine Newstar | S13865 |
| Genuine Newstar | SD-170-4-1271-1X |
| Spicer | SD170412711X |
| Freightliner | SP170-4-1271-1X |
| Freightliner | SP170412711X |
