GTP06212

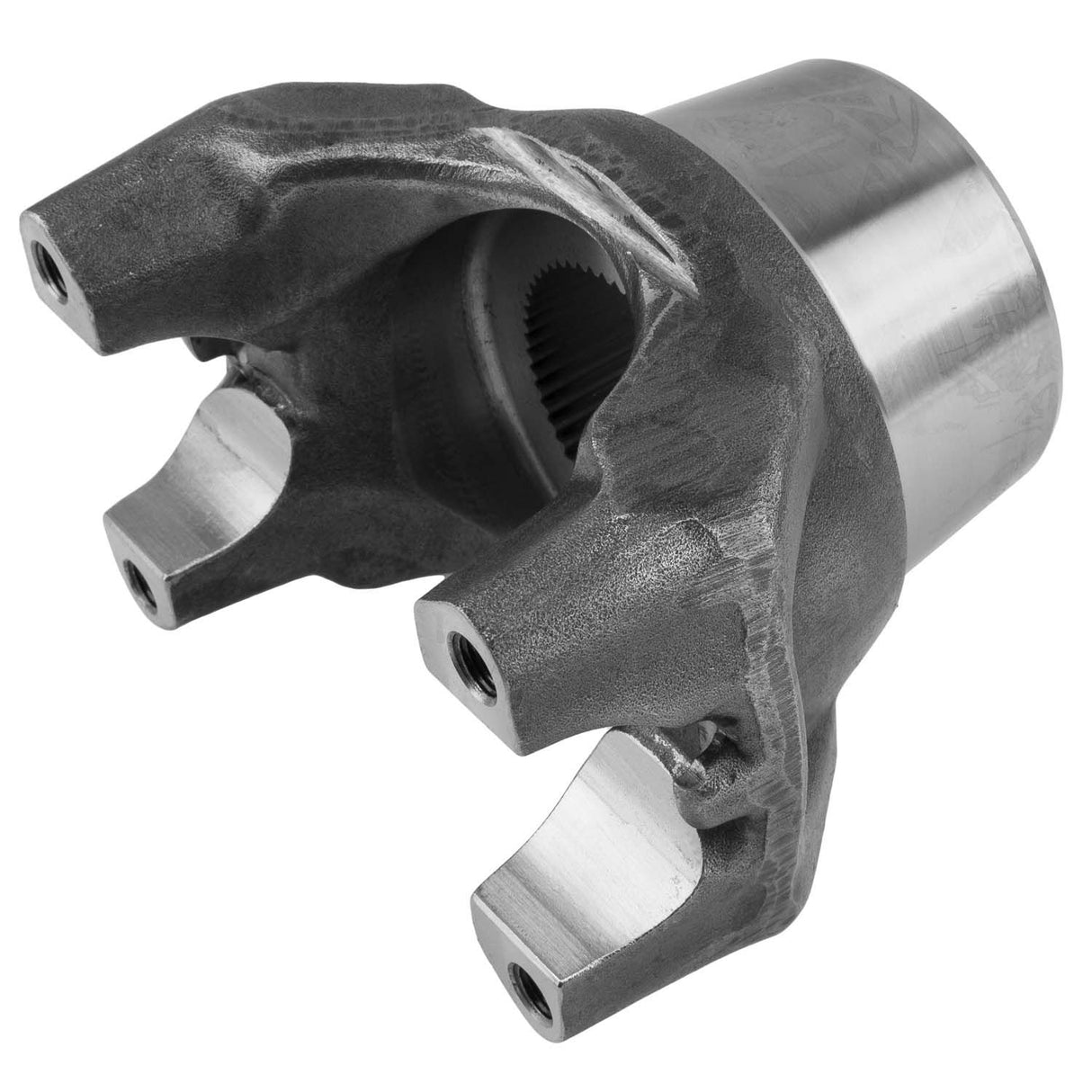

Half Round Style SPL170 Series End Yoke 54 Spline | 170-4-561-1, 170-4-561-1N, 170-4-561-1X, 176MU41P19, 2607-590-C, 3519-153-C, 5505571, FUL 5505571, N170-4-561-1, S-15320, S15320, SD-170-4-561-1, SD17045611, SP17045611
Regular price
$123.95
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 54 Spline | 170-4-561-1, 170-4-561-1N, 170-4-561-1X, 176MU41P19, 2607-590-C, 3519-153-C, 5505571, FUL 5505571, N170-4-561-1, S-15320, S15320, SD-170-4-561-1, SD17045611, SP17045611 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 54 Spline | 170-4-561-1, 17...
Regular price
$123.95
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Bore Diameter | 2.794 Inch |
| Centerline To End | 5.6 |
| Centerline to End | 5.6 Inch |
| Dimensions | Spline Size: 2.794 - 54 Major Diameter: 2.794 Length Thru Hole: 2.750 Centerline To End: 5.600 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.794 Inch |
| Material | Steel |
| Outside Yoke Dimension | 6.456 Inch |
| Series | SPL170 Series |
| Spline Quantity | 54 |
| Spline Size | 2.794 - 54 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.794 Inch |
| Yoke Bearing Dimension | 2.166 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-561-1 |
| Spicer | 170-4-561-1N |
| Spicer | 170-4-561-1X |
| Mack | 176MU41P19 |
| International | 2607-590-C |
| International | 3519-153-C |
| Fuller- Transmissions | 5505571 |
| Freightliner | FUL 5505571 |
| Neapco OE Series | N170-4-561-1 |
| Genuine Newstar | S-15320 |
| Genuine Newstar | S15320 |
| Genuine Newstar | SD-170-4-561-1 |
| Spicer | SD17045611 |
| Freightliner | SP17045611 |
