SKU:
GTP06183

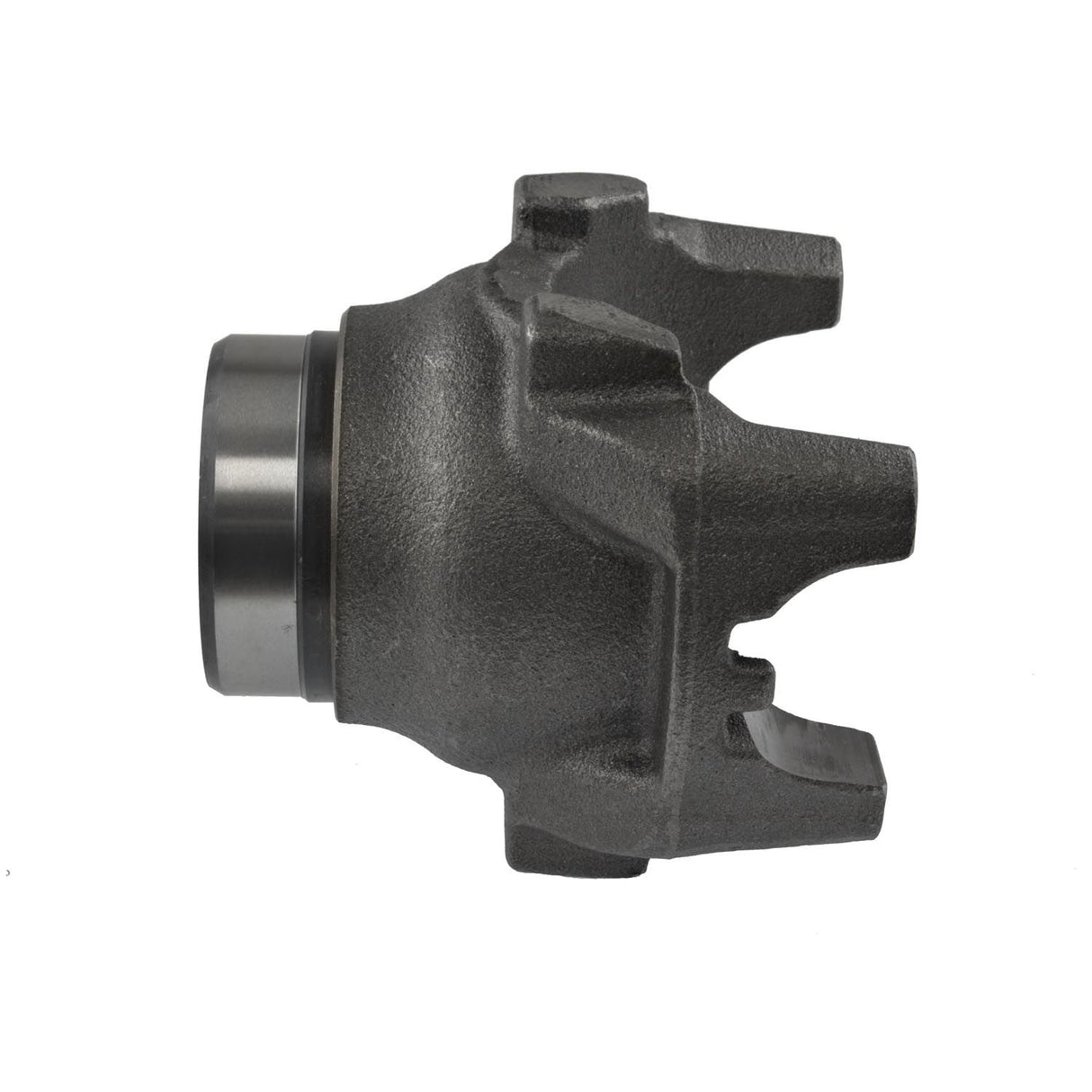

Half Round Style SPL250 Series End Yoke 10 Spline | 250-4-231-1, 250-4-241-1, 25042411X, 5505566, N250-4-241-1X, S-17583, S-19111, S17583, S19111, SD-250-4-241-1X, SD25042411X, SP25042411X
Regular price
$197.60
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL250 Series End Yoke 10 Spline | 250-4-231-1, 250-4-241-1, 25042411X, 5505566, N250-4-241-1X, S-17583, S-19111, S17583, S19111, SD-250-4-241-1X, SD25042411X, SP25042411X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL250 Series End Yoke 10 Spline | 250-4-231-1, 25...
Regular price
$197.60
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 6.297 |
| Centerline to End | 6.297 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 6.297 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 6.417 Inch |
| Series | SPL250 Series |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.75 Inch |
| Yoke Bearing Dimension | 2.362 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 250-4-231-1 |
| Spicer | 250-4-241-1 |
| Prima Brands | 25042411X |
| Fuller- Transmissions | 5505566 |
| Neapco OE Series | N250-4-241-1X |
| Genuine Newstar | S-17583 |
| Genuine Newstar | S-19111 |
| Genuine Newstar | S17583 |
| Genuine Newstar | S19111 |
| Genuine Newstar | SD-250-4-241-1X |
| Spicer | SD25042411X |
| Freightliner | SP25042411X |
