SKU:
GTP06180

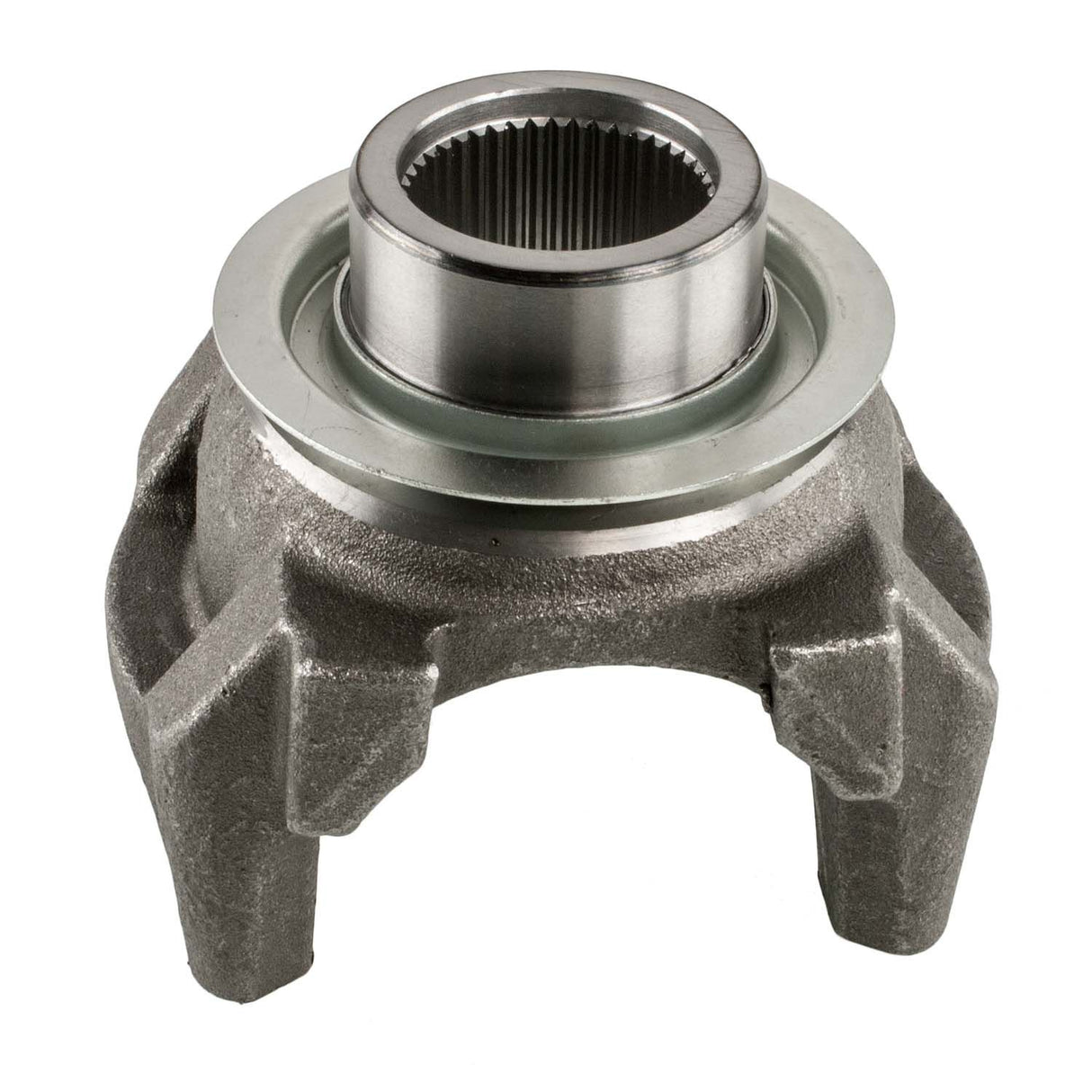

Half Round Style SPL250 Series End Yoke 44 Spline | 181MU41P5, 210833, 250-4-71-1, 250-4-81-1, 250-4-81-1X, 250-4-81-1XFP, 2607-766-C, 3517-493-C, 8081944, N250-4-81-1X, NEPN250-4-81-1X, S-13868, S13868, SD-250-4-81-1X, SD2504811X, SP250-4-81-1X
Regular price
$142.02
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL250 Series End Yoke 44 Spline | 181MU41P5, 210833, 250-4-71-1, 250-4-81-1, 250-4-81-1X, 250-4-81-1XFP, 2607-766-C, 3517-493-C, 8081944, N250-4-81-1X, NEPN250-4-81-1X, S-13868, S13868, SD-250-4-81-1X, SD2504811X, SP250-4-81-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL250 Series End Yoke 44 Spline | 181MU41P5, 2108...
Regular price
$142.02
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.236 Inch |
| C-Bore Depth | 0.236 Inch |
| Centerline To End | 5.49 |
| Centerline to End | 5.49 Inch |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 3.000 Length Thru Hole: 2.500 Centerline To End: 5.490 CBore Depth: 0.236 Inch |
| Ground Hub Diameter | 3 Inch |
| Hole Diameter | 2.274 Inch |
| Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.417 Inch |
| Series | SPL250 Series |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.274 Inch |
| Yoke Bearing Dimension | 2.362 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Mack | 181MU41P5 |
| Spicer | 210833 |
| Spicer | 250-4-71-1 |
| Spicer | 250-4-81-1 |
| Spicer | 250-4-81-1X |
| Spicer | 250-4-81-1XFP |
| International | 2607-766-C |
| International | 3517-493-C |
| Volvo Truck | 8081944 |
| Neapco OE Series | N250-4-81-1X |
| Automann | NEPN250-4-81-1X |
| Genuine Newstar | S-13868 |
| Genuine Newstar | S13868 |
| Genuine Newstar | SD-250-4-81-1X |
| Spicer | SD2504811X |
| Freightliner | SP250-4-81-1X |
| Freightliner | SP2504811X |
