SKU:
GTP04590

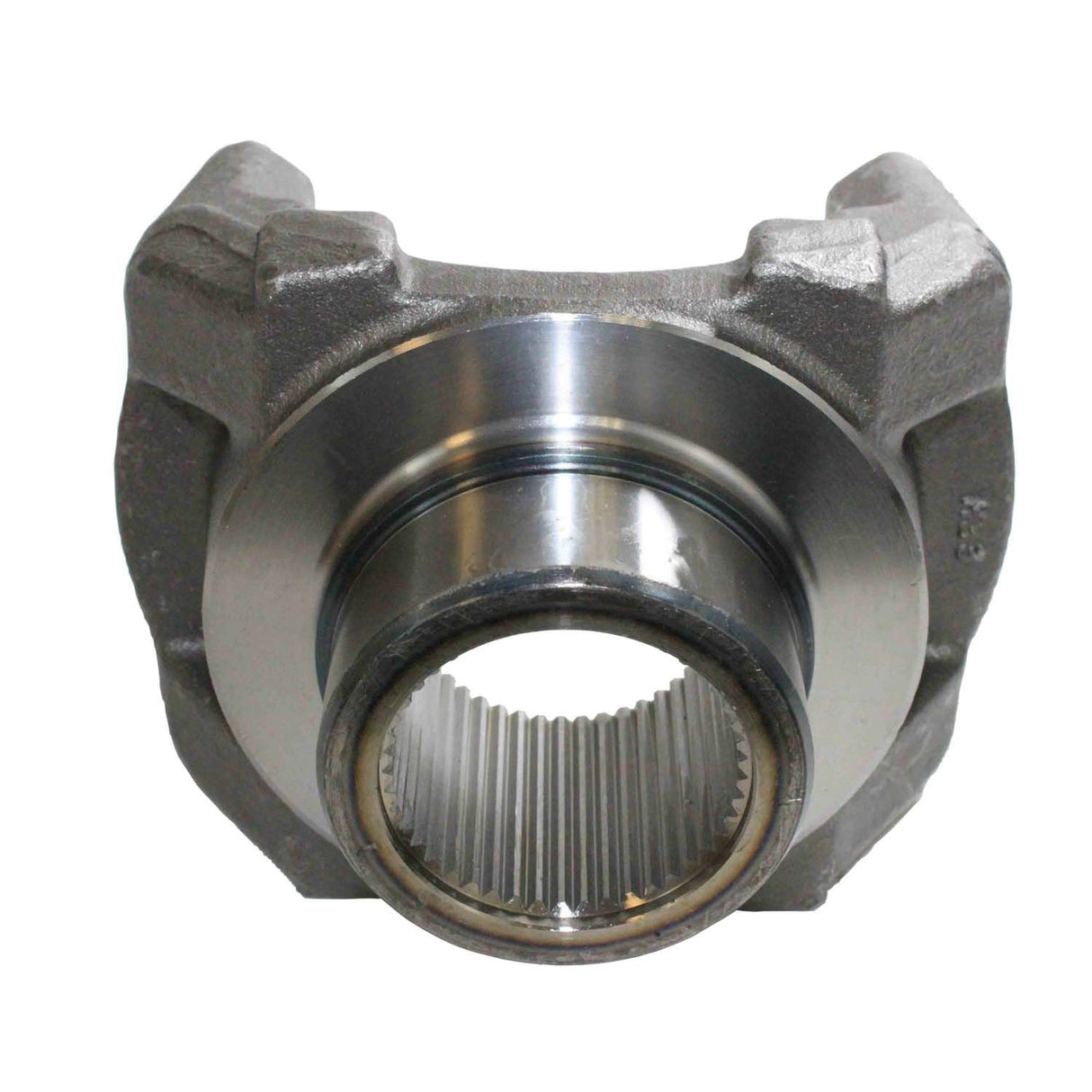

Half Round Style SPL250 Series End Yoke 46 Spline | 125MU53P16, 250-4-341-1, 250-4-351-1XR, 25043511X, 250TYS38-2A, 2603-014-C, 2603014C91, 3513-839-C, 3595-286-C, 3969891, 8081943, N250-4-351-1X, NEPN250-4-351-1X, S-14005, S14005
Regular price
$178.93
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL250 Series End Yoke 46 Spline | 125MU53P16, 250-4-341-1, 250-4-351-1XR, 25043511X, 250TYS38-2A, 2603-014-C, 2603014C91, 3513-839-C, 3595-286-C, 3969891, 8081943, N250-4-351-1X, NEPN250-4-351-1X, S-14005, S14005 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL250 Series End Yoke 46 Spline | 125MU53P16, 250...
Regular price
$178.93
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Bearing Type | HR |
|---|---|
| C'bore Depth | 0.14 Inch |
| Centerline To End | 5.312 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.312 Centerline To End: 5.312 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.39 Inch |
| Series | SPL250 Series |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Mack | 125MU53P16 |
| Spicer | 250-4-341-1 |
| World American | 250-4-351-1XR |
| World American | |
| Prima Brands | 25043511X |
| Meritor | 250TYS38-2A |
| International | 2603-014-C |
| Spicer | 2603014C91 |
| International | 3513-839-C |
| International | 3595-286-C |
| Volvo Truck | 3969891 |
| Volvo Truck | 8081943 |
| Neapco OE Series | N250-4-351-1X |
| Automann | NEPN250-4-351-1X |
| Genuine Newstar | S-14005 |
| Genuine Newstar | S14005 |
| Genuine Newstar | SD-250-4-351-1X |
| Spicer | SD25043511X |
| Freightliner | TDA 250TYS38 2A |
