SKU:
GTP06181

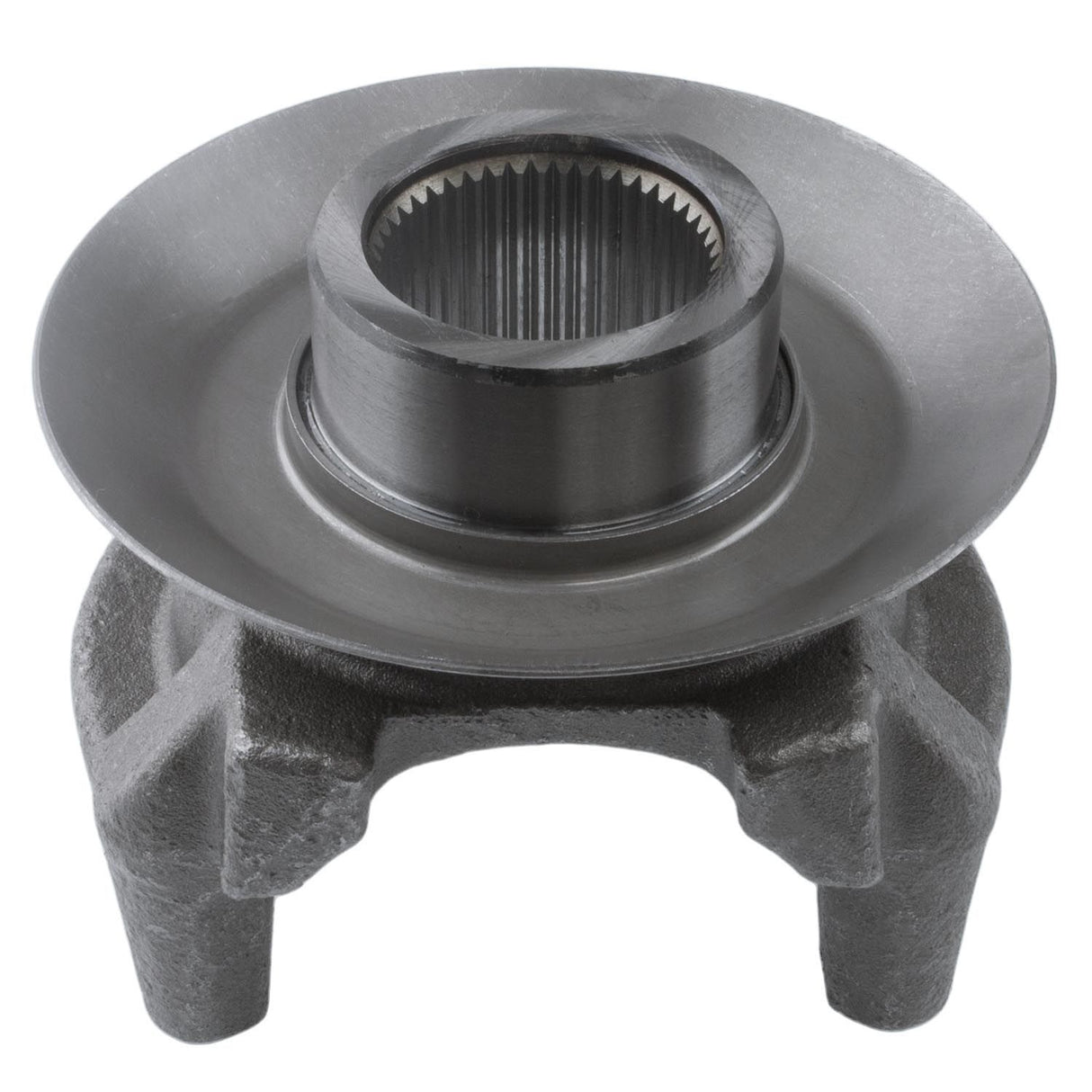

Half Round Style SPL250 Series End Yoke 46 Spline | 250-4-341-1R, 250-4-351-1X, 3969891, 8081943, S-47210, S47210
Regular price
$118.43
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL250 Series End Yoke 46 Spline | 250-4-341-1R, 250-4-351-1X, 3969891, 8081943, S-47210, S47210 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL250 Series End Yoke 46 Spline | 250-4-341-1R, 2...
Regular price
$118.43
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| C-Bore Depth | 0.14 Inch |
| Centerline to End | 5.312 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.312 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 6.417 Inch |
| Series | SPL250 Series |
| Spline Quantity | 46 |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 2.362 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| World American | 250-4-341-1R |
| Spicer | 250-4-351-1X |
| Volvo Truck | 3969891 |
| Volvo Truck | 8081943 |
| Genuine Newstar | S-47210 |
| Genuine Newstar | S47210 |
