SKU:
GTP06182

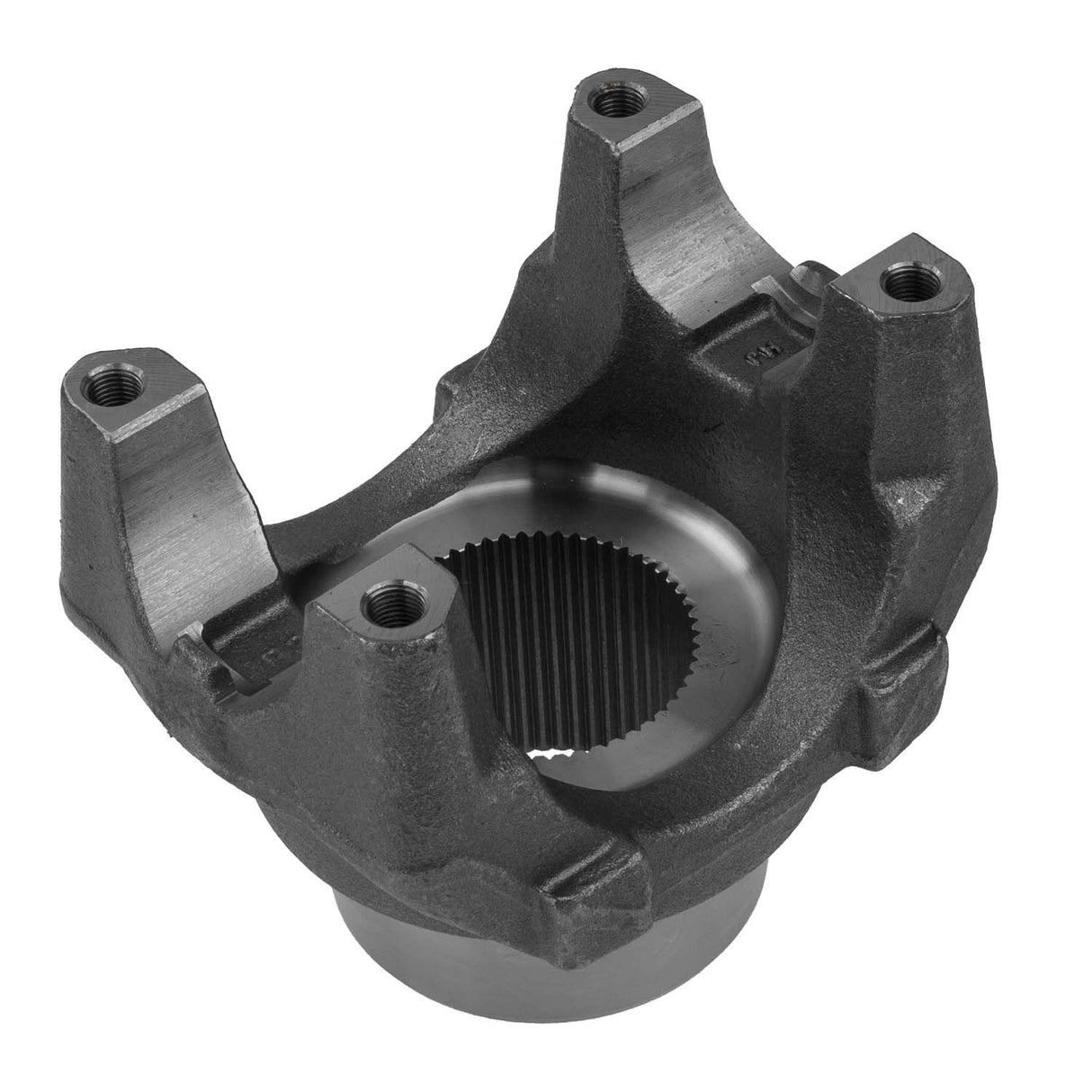

Half Round Style SPL250 Series End Yoke 54 Spline | 01SPL250-4-271-1, 2104-25042711, 250-4-271-1, 25042711, 2607-592-C, 2607592C1, 3518-151-C, 3518151C1, 5505572, 8081948, FUL5505572, N250-4-271-1, NEPN250-4-271-1, S-17731, S17731, SD-250-4-271-1
Regular price
$131.32
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL250 Series End Yoke 54 Spline | 01SPL250-4-271-1, 2104-25042711, 250-4-271-1, 25042711, 2607-592-C, 2607592C1, 3518-151-C, 3518151C1, 5505572, 8081948, FUL5505572, N250-4-271-1, NEPN250-4-271-1, S-17731, S17731, SD-250-4-271-1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL250 Series End Yoke 54 Spline | 01SPL250-4-271-...
Regular price
$131.32
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.703 |
| Centerline to End | 5.703 Inch |
| Dimensions | Spline Size: 2.794 - 54 Major Diameter: 2.794 Length Thru Hole: 2.750 Centerline To End: 5.703 Inch |
| Hole Diameter | 2.794 Inch |
| Involute Spline | No |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.794 Inch |
| Material | Steel |
| Outside Yoke Dimension | 6.417 Inch |
| Series | SPL250 Series |
| Spline Quantity | 54 |
| Spline Size | 2.794 - 54 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.794 Inch |
| Yoke Bearing Dimension | 2.362 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 01SPL250-4-271-1 |
| Mack | 2104-25042711 |
| Spicer | 250-4-271-1 |
| Prima Brands | 25042711 |
| International | 2607-592-C |
| Spicer | 2607592C1 |
| International | 3518-151-C |
| Spicer | 3518151C1 |
| Fuller- Transmissions | 5505572 |
| Volvo Truck | 8081948 |
| Fuller- Transmissions | FUL5505572 |
| Neapco OE Series | N250-4-271-1 |
| Automann | NEPN250-4-271-1 |
| Genuine Newstar | S-17731 |
| Genuine Newstar | S17731 |
| Genuine Newstar | SD-250-4-271-1 |
| Spicer | SD25042711 |
| Freightliner | SP25042711 |
