SKU:
ASP01275

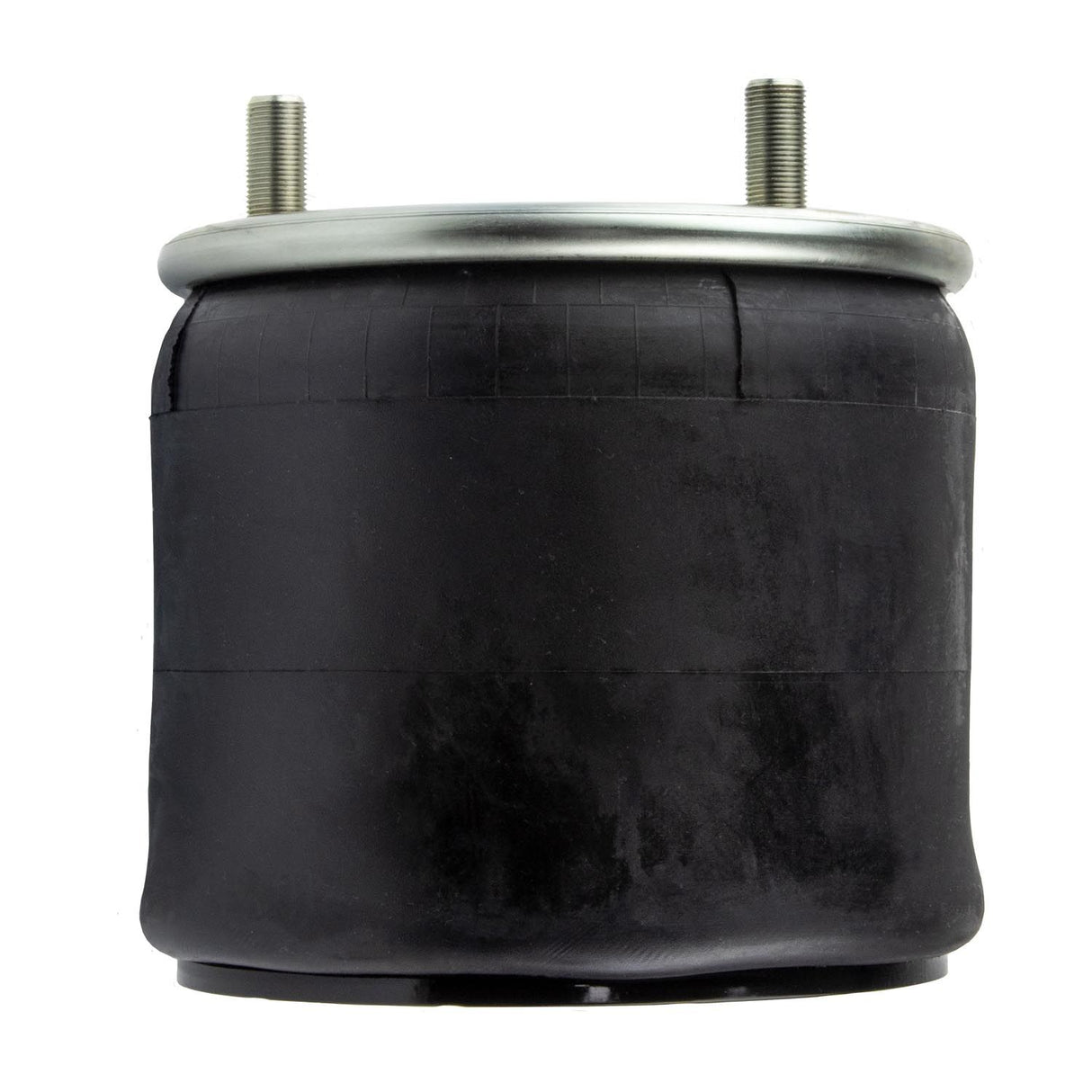

Rolling Lobe Air Spring with 10.2" Dia Top Plate, Replaces Firestone | 10 10-15 S 871, 1001R13109G, 1R13-109, 352-8782, 452-8782L, 66340, 8782, AB1DK25B-8782, AMAB1DK25B8782, AS87820, E-FS8782, FIR-W01-358-8782, FS8782, S-34528, S34528, W01-358-8782
Regular price
$141.89
Unit price
/
Unavailable
Shipping calculated at checkout.
Rolling Lobe Air Spring with 10.2" Dia Top Plate, Replaces Firestone | 10 10-15 S 871, 1001R13109G, 1R13-109, 352-8782, 452-8782L, 66340, 8782, AB1DK25B-8782, AMAB1DK25B8782, AS87820, E-FS8782, FIR-W01-358-8782, FS8782, S-34528, S34528, W01-358-8782 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Rolling Lobe Air Spring with 10.2" Dia Top Plate, Replaces Fir...
Regular price
$141.89
Unit price
/
Unavailable
This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Rolling Lobe |
|---|---|
| Bottom Configuration | 2.25" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 4 |
| Bottom Plate Diameter | 9.5 Inch |
| Bottom Plate to Top Plate Mounting Alignment | 45 Degrees |
| Compressed Length | 5.6 Inch |
| Extended Length | 17.9 Inch |
| Maximum Diameter | 10.12 Inch |
| Top Plate Bolt Hole Quantity | 2 |
| Top Plate Diameter | 10.2 Inch |
| Top Plate Mounting/Fitting Configuration | 6.2" C/C Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Continental-ContiTech | 10 10-15 S 871 |
| Ridewell Corp | 1001R13109G |
| Goodyear | 1R13-109 |
| Dayton Parts | 352-8782 |
| Dayton Parts | 452-8782L |
| Continental-ContiTech | 66340 |
| Firestone | 8782 |
| Automann | AB1DK25B-8782 |
| Automann | AMAB1DK25B8782 |
| Paccar Parts | AS87820 |
| Euclid | E-FS8782 |
| Genuine Newstar | FIR-W01-358-8782 |
| Meritor | FS8782 |
| Genuine Newstar | S-34528 |
| Genuine Newstar | S34528 |
| Firestone | W01-358-8782 |
