SKU:
ASP01271

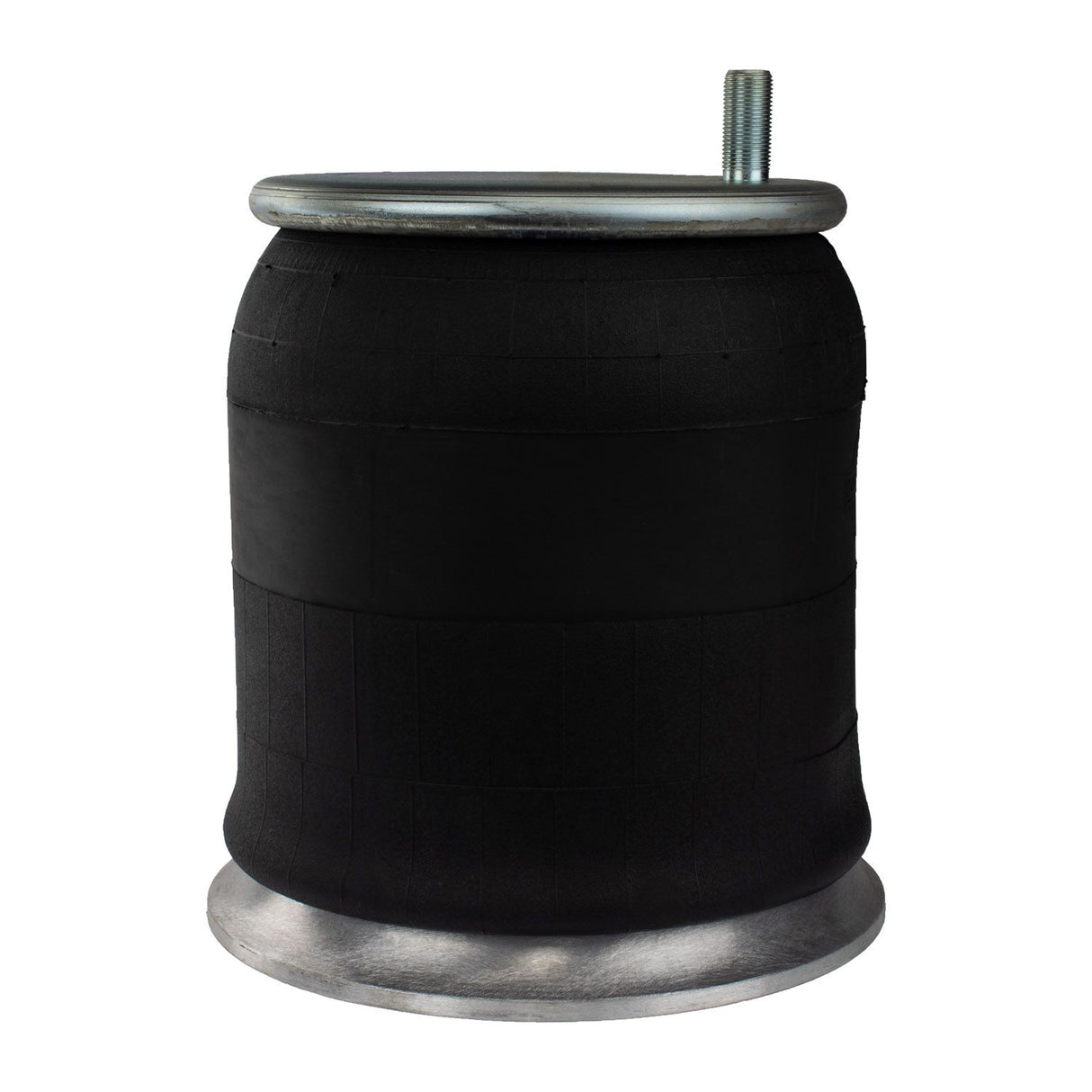

Rolling Lobe Air Spring with Aluminum Base, Replaces Firestone | 10-98944, 1DK23P-8944, 1R12-366, 352-8944, 6391, 64401, 8944, 9 10-17.5 P 436, 910175P436, AB1DK23P-8944, AS-6391, AS8944, AS89440, E-FS8944, FI W01 358 8944, FIR-W01-358-8944, FS8944
Regular price
$116.31
Unit price
/
Unavailable
Shipping calculated at checkout.
Rolling Lobe Air Spring with Aluminum Base, Replaces Firestone | 10-98944, 1DK23P-8944, 1R12-366, 352-8944, 6391, 64401, 8944, 9 10-17.5 P 436, 910175P436, AB1DK23P-8944, AS-6391, AS8944, AS89440, E-FS8944, FI W01 358 8944, FIR-W01-358-8944, FS8944 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Rolling Lobe Air Spring with Aluminum Base, Replaces Firestone | 10...
Regular price
$116.31
Unit price
/
Unavailable
This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Rolling Lobe |
|---|---|
| Base Plate Material | Aluminum |
| Bottom Configuration | 2.25" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 4 |
| Bottom Plate Diameter | 11.1 Inch |
| Bottom Plate to Top Plate Mounting Alignment | Parallel |
| Compressed Length | 7.3 Inch |
| Extended Length | 21.7 Inch |
| Load Rating at 100 PSI | 7500 Pound |
| Load Rating at 80 PSI | 5900 Pound |
| Maximum Diameter | 10.12 Inch |
| Top Plate Bolt Hole Quantity | 1 |
| Top Plate Diameter | 9 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Batco | 10-98944 |
| Automann | 1DK23P-8944 |
| Goodyear | 1R12-366 |
| Dayton Parts | 352-8944 |
| Triangle Air Springs | 6391 |
| Continental-ContiTech | 64401 |
| Firestone | 8944 |
| Continental-ContiTech | 9 10-17.5 P 436 |
| Continental-ContiTech | 910175P436 |
| Automann | AB1DK23P-8944 |
| Triangle Air Springs | AS-6391 |
| Meritor | AS8944 |
| Paccar Parts | AS89440 |
| Euclid | E-FS8944 |
| Freightliner | FI W01 358 8944 |
| Genuine Newstar | FIR-W01-358-8944 |
| Meritor | FS8944 |
| Hendrickson | HT190U |
| BWP | M-3567 |
| Hendrickson | S-20217 |
| Genuine Newstar | S-36236 |
| Hendrickson | S20217 |
| Genuine Newstar | S36236 |
| Torque | TR8944 |
| Firestone | W01-358-8944 |
| Firestone | W01-358-9015 |
