SKU:
ASP01262

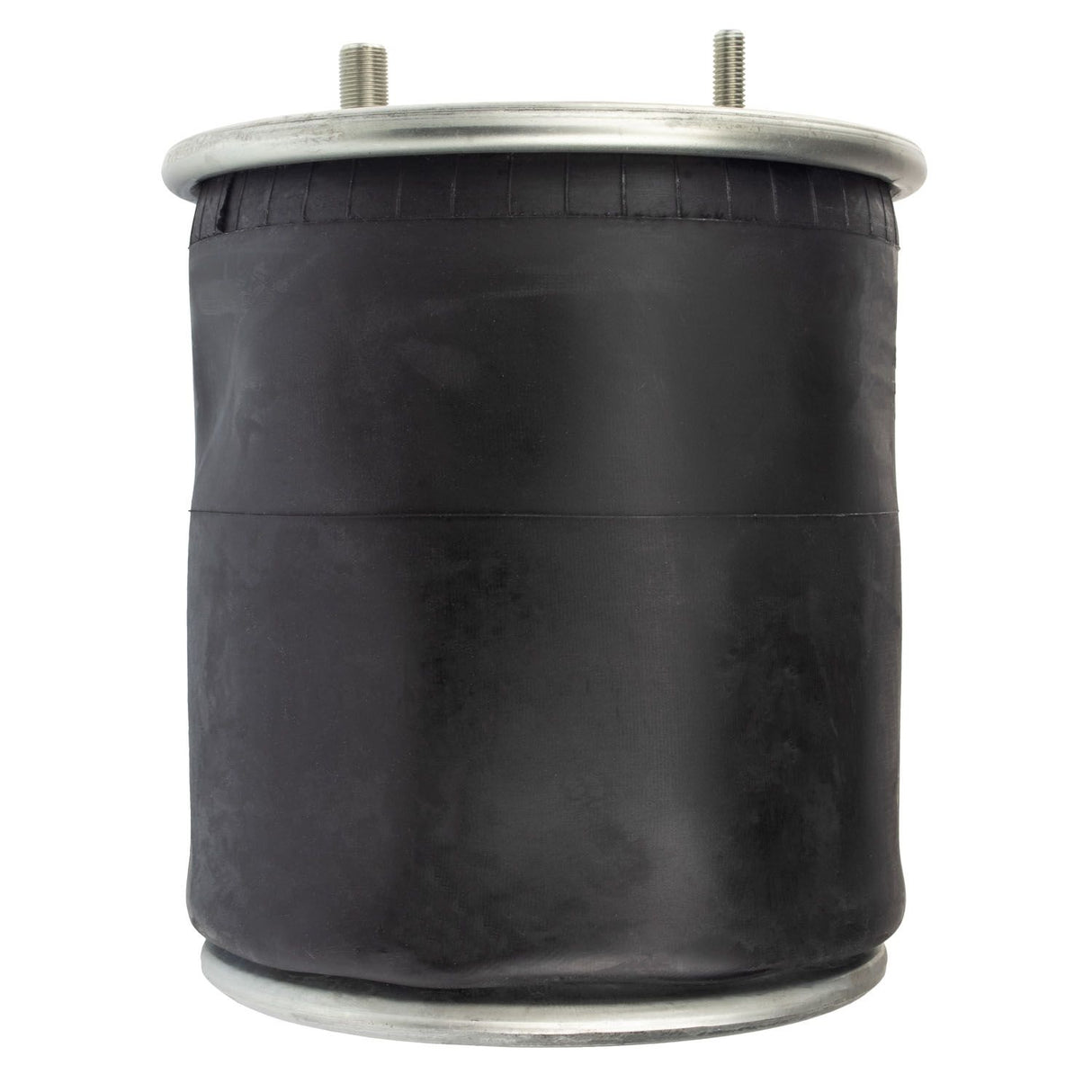

Rolling Lobe Air Spring with Aluminum Base, Replaces Goodyear | 10-99122, 1003589122C, 11 10.5-21 A 313, 1110521A313, 12883-02, 1681749C1, 1R13-038, 1R13-048, 1R14-045, 3130500, 352-9122, 4312, 566.ER9122, 6394, 64273, 90557020, 90557071, 90557076
Regular price
$131.68
Unit price
/
Unavailable
Shipping calculated at checkout.
Rolling Lobe Air Spring with Aluminum Base, Replaces Goodyear | 10-99122, 1003589122C, 11 10.5-21 A 313, 1110521A313, 12883-02, 1681749C1, 1R13-038, 1R13-048, 1R14-045, 3130500, 352-9122, 4312, 566.ER9122, 6394, 64273, 90557020, 90557071, 90557076 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Rolling Lobe Air Spring with Aluminum Base, Replaces Goodyear | 10-...
Regular price
$131.68
Unit price
/
Unavailable
This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Rolling Lobe |
|---|---|
| Base Plate Material | Aluminum |
| Bottom Configuration | 7.88" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 4 |
| Bottom Plate Diameter | 10.25 Inch |
| Bottom Plate to Top Plate Mounting Alignment | 45 Degrees |
| Compressed Length | 8.7 Inch |
| Extended Length | 27.3 Inch |
| Load Rating at 100 PSI | 8490 Pound |
| Load Rating at 80 PSI | 6790 Pound |
| Maximum Diameter | 10.62 Inch |
| Top Plate Bolt Hole Quantity | 2 |
| Top Plate Diameter | 11.31 Inch |
| Top Plate Mounting/Fitting Configuration | 5.5" C/C Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Batco | 10-99122 |
| Ridewell Corp | 1003589122C |
| Continental-ContiTech | 11 10.5-21 A 313 |
| Continental-ContiTech | 1110521A313 |
| Reyco Granning | 12883-02 |
| International | 1681749C1 |
| Goodyear | 1R13-038 |
| Goodyear | 1R13-048 |
| Goodyear | 1R14-045 |
| Volvo Truck | 3130500 |
| Dayton Parts | 352-9122 |
| Triangle Air Springs | 4312 |
| Automann | 566.ER9122 |
| Triangle Air Springs | 6394 |
| Continental-ContiTech | 64273 |
| Holland | 90557020 |
| Holland | 90557071 |
| Holland | 90557076 |
| Holland | 90557077 |
| Holland | 90557185 |
| Firestone | 9122 |
| Automann | AB1D28C-9122 |
| Automann | AB1D28C-A026 |
| Watson & Chalin | AS-0023 |
| Triangle Air Springs | AS-4312 |
| Paccar Parts | AS91220 |
| Binkley | B-12514-008 |
| Binkley | B-12514-010 |
| Hendrickson | C22173 |
| Euclid | E-FS9122 |
| Meritor | FS9122 |
| BWP | M-3518 |
| Genuine Newstar | MDW- |
| Meritor | RFS9122 |
| Hendrickson | S-12437 |
| Hendrickson | S-3467 |
| Hendrickson | S-3830 |
| Genuine Newstar | S-44745 |
| Hendrickson | S3467 |
| Hendrickson | S3830 |
| Genuine Newstar | S44745 |
| Leland Brake & Wheel Parts | SC2041 |
| Torque | TR9122 |
| Firestone | W01-358-9122 |
| World American | WA01-9122 |
| World American | WA01-R038 |
