SKU:
ASP01252

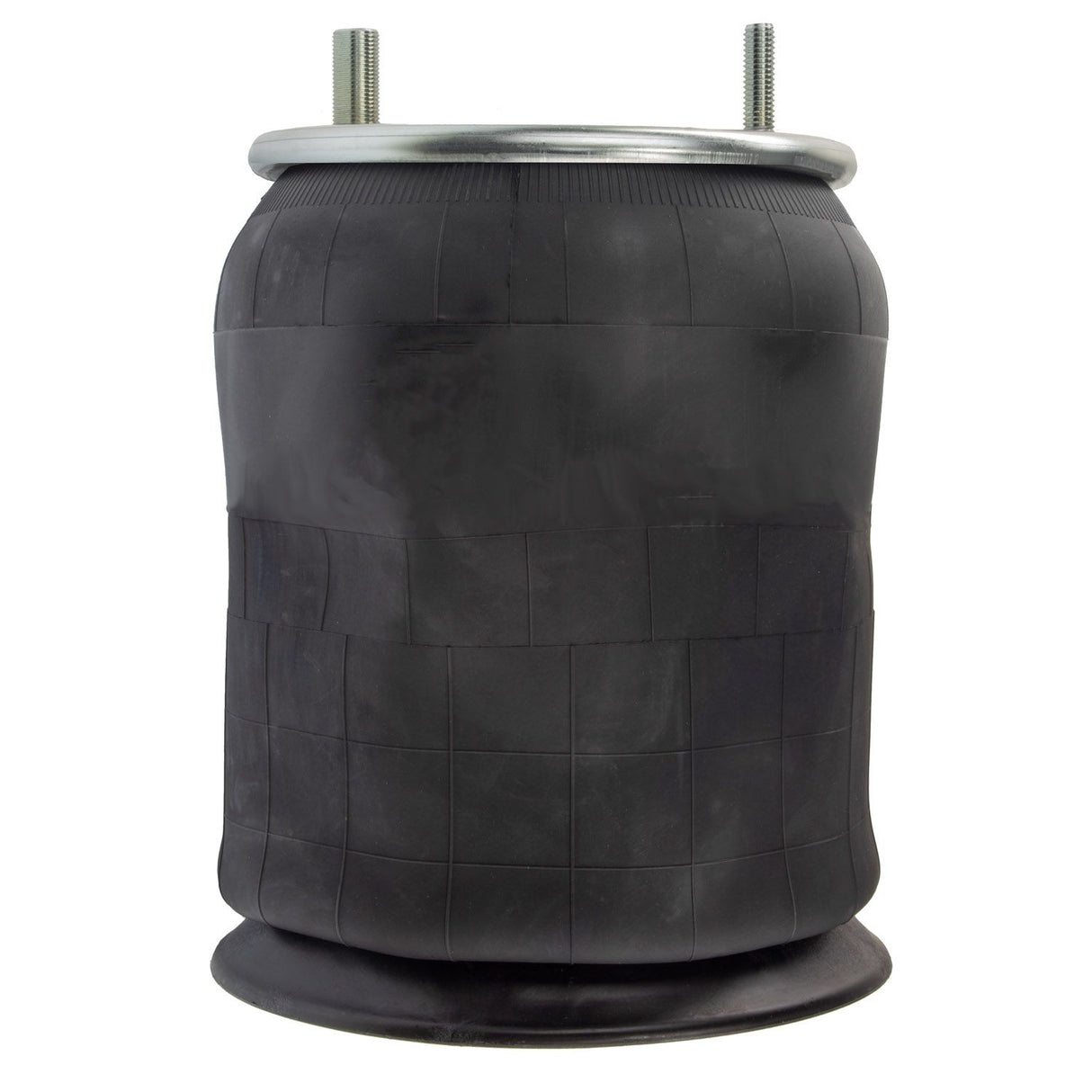

Rolling Lobe Air Spring with Plastic Base, Replaces Goodyear | 003319, 10-99321, 1001R12256G, 1003589321C, 1R12-256, 1R12-3335, 1R12-335, 1R12256, 201335, 3319, 352-9321, 352-9367, 4400, 452-9367, 566.ER9321, 57009321, 64715, 8505, 9 10-21 A 361
Regular price
$115.66
Unit price
/
Unavailable
Shipping calculated at checkout.
Rolling Lobe Air Spring with Plastic Base, Replaces Goodyear | 003319, 10-99321, 1001R12256G, 1003589321C, 1R12-256, 1R12-3335, 1R12-335, 1R12256, 201335, 3319, 352-9321, 352-9367, 4400, 452-9367, 566.ER9321, 57009321, 64715, 8505, 9 10-21 A 361 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Rolling Lobe Air Spring with Plastic Base, Replaces Goodyear | 0033...
Regular price
$115.66
Unit price
/
Unavailable
This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Rolling Lobe |
|---|---|
| Base Plate Material | Plastic |
| Bottom Configuration | 2.25" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 4 |
| Bottom Plate Diameter | 10.25 Inch |
| Bottom Plate to Top Plate Mounting Alignment | Parallel |
| Compressed Length | 9.2 Inch |
| Extended Length | 27.6 Inch |
| Load Rating at 100 PSI | 7000 Pound |
| Load Rating at 80 PSI | 5500 Pound |
| Maximum Diameter | 10.12 Inch |
| Top Plate Bolt Hole Quantity | 2 |
| Top Plate Diameter | 9 Inch |
| Top Plate Mounting/Fitting Configuration | 6.2" C/C Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Hendrickson | 003319 |
| Batco | 10-99321 |
| Stoughton Trailers | 1001R12256G |
| Ridewell Corp | 1003589321C |
| World American | 1R12-256 |
| Goodyear | 1R12-3335 |
| Goodyear | 1R12-335 |
| Goodyear | 1R12256 |
| Meritor | 201335 |
| Hendrickson | 3319 |
| Dayton Parts | 352-9321 |
| Dayton Parts | 352-9367 |
| Triangle Air Springs | 4400 |
| Dayton Parts | 452-9367 |
| Automann | 566.ER9321 |
| Holland | 57009321 |
| Continental-ContiTech | 64715 |
| Triangle Air Springs | 8505 |
| Continental-ContiTech | 9 10-21 A 361 |
| Continental-ContiTech | 91021A361 |
| Firestone | 9321 |
| Firestone | 9367 |
| Automann | AB1DK23N-9321 |
| Automann | AB1DK23N-9321A |
| Automann | AB1DK23N-9367 |
| Automann | AB1DK23N9367 |
| Automann | AMAB1DK23N9367 |
| Watson & Chalin | AS-0036 |
| Watson & Chalin | AS-0104 |
| Triangle Air Springs | AS-4400 |
| Triangle Air Springs | AS-9367 |
| Goodyear | AS93670 |
| Hendrickson | B14249 |
| Euclid | E-FS9321 |
| Euclid | E-FS9367 |
| Freightliner | FI W01 358 9367 |
| Meritor | FS9321 |
| Meritor | FS9367 |
| Freightliner | GBH1R12256 |
| Freightliner | GYR 1R12 256 |
| Genuine Newstar | GYR-1R12-256 |
| Goodyear | GYR1R12256 |
| BWP | M-3545 |
| Hendrickson | NS-501304 |
| Hendrickson | NS501304 |
| Meritor | RFS9321 |
| Hendrickson | RR003319 |
| Hendrickson | S-14249 |
| Genuine Newstar | S-23175 |
| Hendrickson | S14249 |
| Genuine Newstar | S23175 |
| Leland Brake & Wheel Parts | SC2120 |
| Goodyear | STM1R12256 |
| Goodyear | TDAFS9367 |
| Torque | TR9321 |
| Firestone | W01-358-9321 |
| Firestone | W01-358-9367 |
| World American | WA01-9321 |
| World American | WA019367C |
