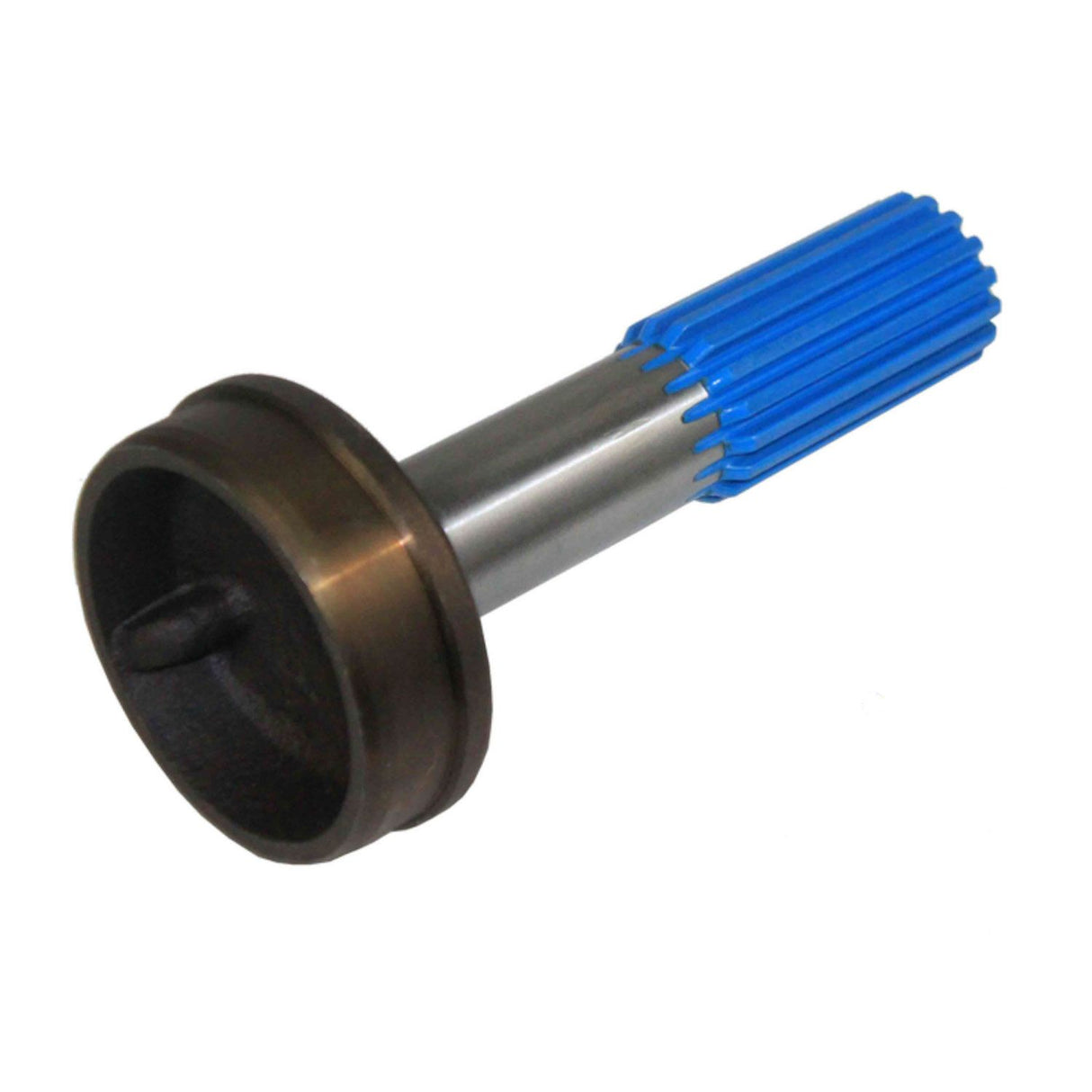

This Drive Shaft Stub Shaft is balanced and heat treated for smooth power transfer and extended service life. It eliminates vibration and driveline noise while handling maximum torque loads in commercial trucks.
Specifications
| Series | 1310 Series|1480 Series |
|---|---|
| Spline | 1.562 - 16x 3 Inch |
| Spline Diameter | 1.562 Inch |
| Spline End To Radius | 5.81 Inch |
| Spline End To Weld | 6.75 Inch |
| Spline End Weld | 6.75 |
| Spline Length | 1.562 - 16x 3 |
| Spline Length | 3 Inch |
| Spline Quantity | 16 |
| Tube Wall Thickness | 0.083 Inch |
| Tubing Diameter | 3.5 Inch |
| Tubing Diameter And Wall | 3 1/2 x .083 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 148N40-1571 |
| Spicer | 3-40-1571 |
| Neapco OE Series | N3-40-1571 |
| Automann | NEPN3-40-1571 |
| Genuine Newstar | S-19824 |
| Genuine Newstar | S19824 |
| Genuine Newstar | SD-3-40-1571 |
| Spicer | SD3401571 |
