SKU:
GTP11898

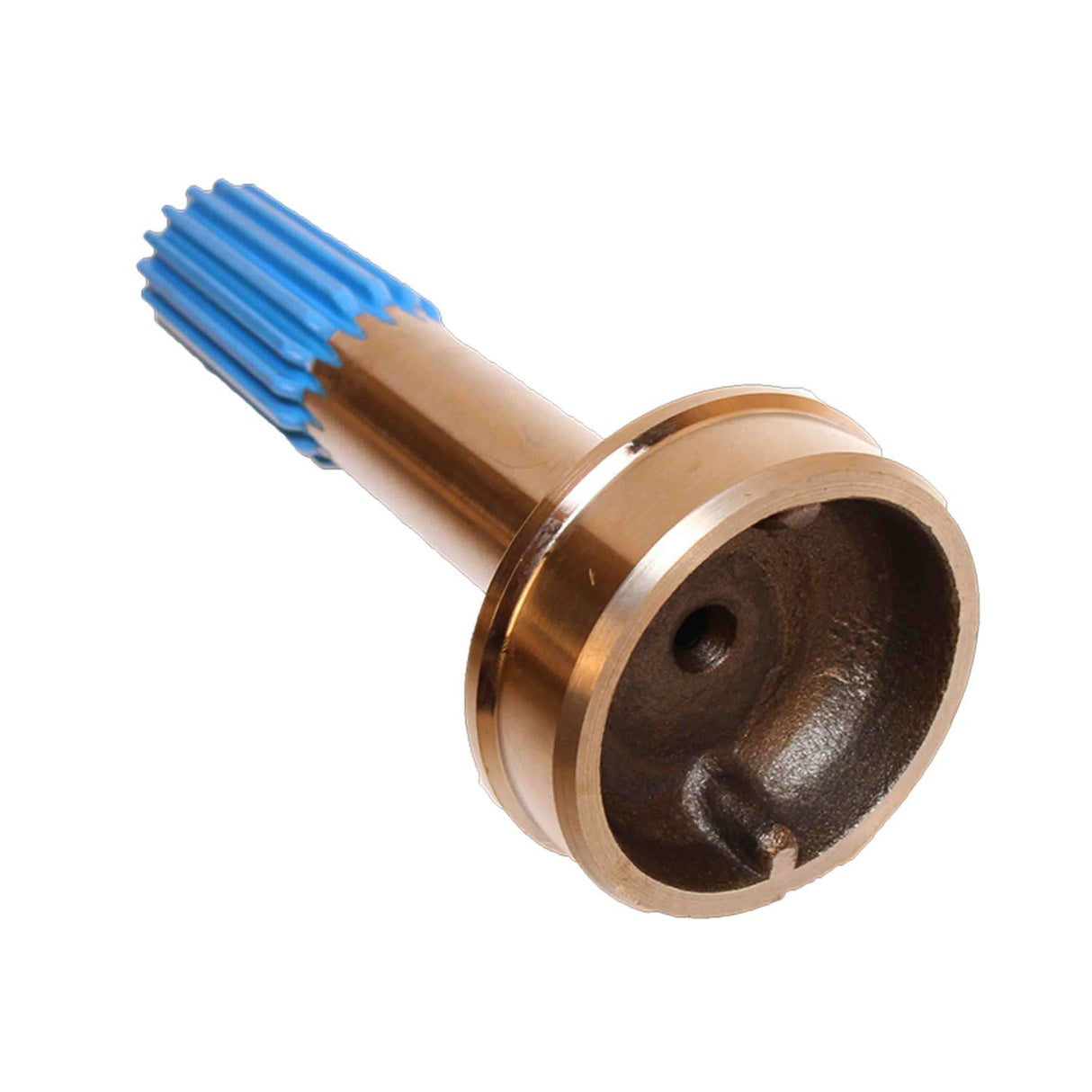

STUB SHAFT - 1310 SERIES | 3-40-1421, S-21771, S21771, SD-3-40-1421, SD3401421
Regular price
$85.55
Unit price
/
Unavailable
Shipping calculated at checkout.
STUB SHAFT - 1310 SERIES | 3-40-1421, S-21771, S21771, SD-3-40-1421, SD3401421 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
STUB SHAFT - 1310 SERIES | 3-40-1421, S-21771, S21771, SD-3-40-1421...
Regular price
$85.55
Unit price
/
Unavailable
This Drive Shaft Stub Shaft is balanced and heat treated for smooth power transfer and extended service life. It eliminates vibration and driveline noise while handling maximum torque loads in commercial trucks.
Specifications
| Series | 1310 Series|1410 Series |
|---|---|
| Spline | 1 1/2-16 Inch |
| Spline Diameter | 1.5 Inch |
| Spline End To Radius | 6.594 Inch |
| Spline End To Weld | 7.406 Inch |
| Spline End Weld | 7.406 |
| Spline Length | 1 1/2-16 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 16 |
| Tube Dimensions | 3 Diameter x .083 wall |
| Tube Wall Thickness | 0.083 Inch |
| Tubing Diameter | 3 Inch |
| Tubing Diameter And Wall | 3 x .083 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 3-40-1421 |
| Genuine Newstar | S-21771 |
| Genuine Newstar | S21771 |
| Genuine Newstar | SD-3-40-1421 |
| Spicer | SD3401421 |
